Pinch Valves "AKV-Volkmann"

Valves with threaded connection, screwed*

This valve is provided with a female thread on both connection sides. If you need a valve for connection to an external thread, e.g. on a pipe, this is the appropriate valve type. It is available from us in all common nominal sizes up to DN 100. We can also supply larger nominal diameters on request.

Valves with threaded connection, not screwed*

This valve is provided with a female thread on both connections. If you need a valve for connection to an external thread, e.g. on a pipe, this is the appropriate valve type. It is available from us in the nominal widths DN 40 and DN 50.

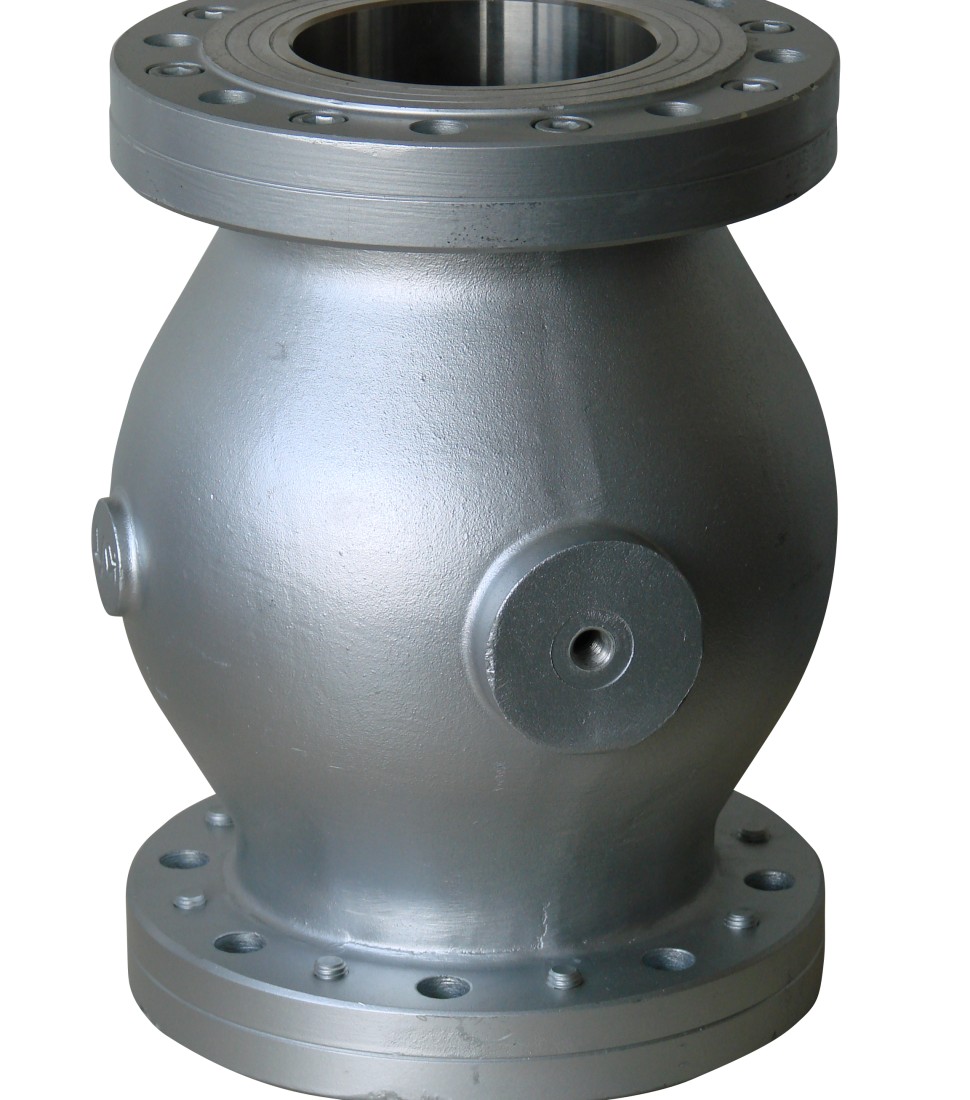

Valves with flanged connection, bolted*

This valve is equipped with a flange on both connection sides. If you need a valve to connect to a flange, this is the correct valve type. It is available from us in all common nominal sizes up to DN 125. We can also supply larger nominal diameters on request.

Valves with pipe connection, screwed*

This valve is equipped with a pipe section for connection on both connection sides. If you need a valve for connection to a socket or similar, this is the appropriate valve type. It is available from us in all common nominal sizes up to DN 125. We can also supply larger nominal diameters on request.

Valves with socket connection, not screwed*

This valve is provided with a sleeve for connection on both connection sides. If you need a valve for connection to a pipe or similar, this is the appropriate valve type. It is available from us in all common nominal diameters from DN 40 to DN 100.

Bakery valves, not screwed*

Bakery valves represent a more cost-effective alternative for bakeries, as they are specially designed to meet their needs. They are only available in the standard width DN 40 and with pipe connection.
